CDL Series Light Multistage Centrifugal Pump
CDL light multistage centrifugal pump working conditions
1. used in delivery of liquids that is clean, hot or cold, non flammable, not explosive, containing no solid particles or fibers.
2. liquid temperature: -15℃~120℃
3. ambient temperature: +40℃ at most
4. The minimum pressure at inlet: according to the NPSH curve and the minimum security lift 0.5m.
CDL light multistage centrifugal pump application range
1. Common type is used in delivery of liquids that is clean, hot or cold, and in recycling and pressurizing of soft water.
2. Stainless steel type is used in delivery of slightly alkaline water, mineral water, distilled water, swimming pool water and other liquid containing the chloride, the temperature of the liquids shall be decreased to certain degree.
CDL light multistage centrifugal pump typical application situations
1. Municipal water supply and pressurization
2. Water supply for industrial circulating system and processing system
3. Boiler feed water and condensate system
4. Domestic water supply
5. Environmental water treatment and seepage analysis system
6. Agricultural irrigation and dehydration
7. Water supply for industry workshop clean and other cleaning work
8. Other special purposes
| Model | H.Max | Q.Max | Motor Power | Speed |
| （m） | （m3/h） | （KW） | （r/min） | |
| CDLF1-2 | 11.5 | 1 | 0.37 | 2900 |
| CDLF1-3 | 17 | 1 | 0.37 | 2900 |
| CDLF1-4 | 22.5 | 1 | 0.37 | 2900 |
| CDLF1-5 | 28 | 1 | 0.37 | 2900 |
| CDLF1-6 | 33.5 | 1 | 0.37 | 2900 |
| CDLF1-7 | 39 | 1 | 0.37 | 2900 |
| CDLF1-8 | 45 | 1 | 0.55 | 2900 |
| CDLF1-9 | 51 | 1 | 0.55 | 2900 |
| CDLF1-10 | 57 | 1 | 0.55 | 2900 |
| CDLF1-17 | 95 | 1 | 1.1 | 2900 |
| CDLF1-19 | 106 | 1 | 1.1 | 2900 |
| CDLF1-21 | 117 | 1 | 1.1 | 2900 |
| CDLF1-23 | 128 | 1 | 1.1 | 2900 |
| CDLF1-25 | 139 | 1 | 1.5 | 2900 |
| CDLF1-27 | 150 | 1 | 1.5 | 2900 |
| CDLF1-30 | 166 | 1 | 1.5 | 2900 |
| CDLF1-33 | 183 | 1 | 2.2 | 2900 |
| CDLF1-36 | 200 | 1 | 2.2 | 2900 |
| CDLF2-2 | 15 | 2 | 0.37 | 2900 |
| CDLF2-3 | 22 | 2 | 0.37 | 2900 |
| CDLF2-4 | 30 | 2 | 0.55 | 2900 |
| CDLF2-5 | 37 | 2 | 0.55 | 2900 |
| CDLF2-6 | 45 | 2 | 0.75 | 2900 |
| CDLF2-7 | 52 | 2 | 0.75 | 2900 |
| CDLF2-9 | 67 | 2 | 1.1 | 2900 |
| CDLF2-11 | 82 | 2 | 1.1 | 2900 |
| CDLF2-13 | 98 | 2 | 1.5 | 2900 |
| CDLF2-15 | 112 | 2 | 1.5 | 2900 |
| CDLF2-18 | 136 | 2 | 2.2 | 2900 |
| CDLF2-22 | 165 | 2 | 2.2 | 2900 |
| CDLF2-26 | 198 | 2 | 3.0 | 2900 |
| CDLF3-2 | 9 | 3 | 0.37 | 2900 |
| CDLF3-3 | 14 | 3 | 0.37 | 2900 |
| CDLF3-4 | 19 | 3 | 0.37 | 2900 |
| CDLF3-5 | 23 | 3 | 0.37 | 2900 |
| CDLF3-6 | 28 | 3 | 0.55 | 2900 |
| CDLF3-7 | 32 | 3 | 0.55 | 2900 |
| CDLF3-8 | 37 | 3 | 0.75 | 2900 |
| CDLF3-9 | 42 | 3 | 0.75 | 2900 |
| CDLF3-10 | 47 | 3 | 0.75 | 2900 |
| CDLF3-11 | 51 | 3 | 1.1 | 2900 |
| CDLF3-12 | 55 | 3 | 1.1 | 2900 |
| CDLF3-13 | 60 | 3 | 1.1 | 2900 |
| CDLF3-15 | 69 | 3 | 1.1 | 2900 |
| CDLF3-17 | 79 | 3 | 1.5 | 2900 |
| CDLF3-19 | 88 | 3 | 1.5 | 2900 |
| CDLF3-21 | 98 | 3 | 2.2 | 2900 |
| CDLF3-23 | 107 | 3 | 2.2 | 2900 |
| CDLF3-25 | 116 | 3 | 2.2 | 2900 |
| CDLF3-27 | 124 | 3 | 2.2 | 2900 |
| CDLF3-29 | 133 | 3 | 2.2 | 2900 |
| CDLF3-31 | 142 | 3 | 3 | 2900 |
| CDLF3-33 | 151 | 3 | 3 | 2900 |
| CDLF3-36 | 168 | 3 | 3 | 2900 |
| CDLF4-2 | 15 | 4 | 0.37 | 2900 |
| CDLF4-3 | 24 | 4 | 0.55 | 2900 |
| CDLF4-4 | 32 | 4 | 0.75 | 2900 |
| CDLF4-5 | 40 | 4 | 1.1 | 2900 |
| CDLF4-6 | 48 | 4 | 1.1 | 2900 |
| CDLF4-7 | 56 | 4 | 1.5 | 2900 |
| CDLF4-8 | 64 | 4 | 1.5 | 2900 |
| CDLF4-10 | 81 | 4 | 2.2 | 2900 |
| CDLF4-12 | 95 | 4 | 2.2 | 2900 |
| CDLF4-14 | 112 | 4 | 3 | 2900 |
| CDLF4-16 | 129 | 4 | 3 | 2900 |
| CDLF4-19 | 153 | 4 | 4 | 2900 |
| CDLF4-22 | 178 | 4 | 4 | 2900 |
| CDLF8-2/1 | 9 | 8 | 0.75 | 2900 |
| CDLF8-2 | 18 | 8 | 0.75 | 2900 |
| CDLF8-3 | 27 | 8 | 1.1 | 2900 |
| CDLF8-4 | 36 | 8 | 1.5 | 2900 |
| CDLF8-5 | 45 | 8 | 2.2 | 2900 |
| CDLF8-6 | 54 | 8 | 2.2 | 2900 |
| CDLF8-8 | 73 | 8 | 3.0 | 2900 |
| CDLF8-10 | 92 | 8 | 4.0 | 2900 |
| CDLF8-12 | 111 | 8 | 4.0 | 2900 |
| CDLF8-14 | 130 | 8 | 5.5 | 2900 |
| CDLF8-16 | 148 | 8 | 5.5 | 2900 |
| CDLF8-18 | 167 | 8 | 7.5 | 2900 |
| CDLF8-20 | 186 | 8 | 7.5 | 2900 |
| CDLF12-2 | 20 | 12 | 1.5 | 2900 |
| CDLF12-3 | 30 | 12 | 2.2 | 2900 |
| CDLF12-4 | 40 | 12 | 3 | 2900 |
| CDLF12-5 | 50 | 12 | 3 | 2900 |
| CDLF12-6 | 60 | 12 | 4 | 2900 |
| CDLF12-7 | 70 | 12 | 5.5 | 2900 |
| CDLF12-8 | 80 | 12 | 5.5 | 2900 |
| CDLF12-9 | 91 | 12 | 5.5 | 2900 |
| CDLF12-10 | 101 | 12 | 7.5 | 2900 |
| CDLF12-12 | 121 | 12 | 7.5 | 2900 |
| CDLF12-14 | 141 | 12 | 11 | 2900 |
| CDLF12-16 | 162 | 12 | 11 | 2900 |
| CDLF12-18 | 183 | 12 | 11 | 2900 |
| CDLF16-2 | 22 | 16 | 2.2 | 2900 |
| CDLF16-3 | 34 | 16 | 3.0 | 2900 |
| CDLF16-4 | 46 | 16 | 4.0 | 2900 |
| CDLF16-5 | 58 | 16 | 5.5 | 2900 |
| CDLF16-6 | 70 | 16 | 5.5 | 2900 |
| CDLF16-7 | 82 | 16 | 7.5 | 2900 |
| CDLF16-8 | 94 | 16 | 7.5 | 2900 |
| CDLF16-10 | 118 | 16 | 11 | 2900 |
| CDLF16-12 | 141 | 16 | 11 | 2900 |
| CDLF16-14 | 166 | 16 | 15 | 2900 |
| CDLF16-16 | 189 | 16 | 15 | 2900 |
| CDLF20-1 | 10 | 20 | 1.1 | 2900 |
| CDLF20-2 | 23 | 20 | 2.2 | 2900 |
| CDLF20-3 | 35 | 20 | 4.0 | 2900 |
| CDLF20-4 | 47 | 20 | 5.5 | 2900 |
| CDLF20-5 | 58 | 20 | 5.5 | 2900 |
| CDLF20-6 | 70 | 20 | 7.5 | 2900 |
| CDLF20-7 | 82 | 20 | 7.5 | 2900 |
| CDLF20-8 | 94 | 20 | 11 | 2900 |
| CDLF20-10 | 118 | 20 | 11 | 2900 |
| CDLF20-12 | 142 | 20 | 15 | 2900 |
| CDLF20-14 | 166 | 20 | 15 | 2900 |
| CDLF20-17 | 202 | 20 | 18.5 | 2900 |
| CDLF32-10-1 | 9 | 32 | 1.5 | 2900 |
| CDLF32-10 | 13 | 32 | 2.2 | 2900 |
| CDLF32-20-2 | 20 | 32 | 3.0 | 2900 |
| CDLF32-20 | 27 | 32 | 4.0 | 2900 |
| CDLF32-30-2 | 33 | 32 | 5.5 | 2900 |
| CDLF32-30 | 40 | 32 | 5.5 | 2900 |
| CDLF32-40-2 | 46 | 32 | 7.5 | 2900 |
| CDLF32-40 | 53 | 32 | 7.5 | 2900 |
| CDLF32-50-2 | 60 | 32 | 11 | 2900 |
| CDLF32-50 | 67 | 32 | 11 | 2900 |
| CDLF32-60-2 | 74 | 32 | 11 | 2900 |
| CDLF32-60 | 81 | 32 | 11 | 2900 |
| CDLF32-70-2 | 88 | 32 | 15 | 2900 |
| CDLF32-70 | 95 | 32 | 15 | 2900 |
| CDLF32-80-2 | 102 | 32 | 15 | 2900 |
| CDLF32-80 | 109 | 32 | 15 | 2900 |
| CDLF32-90-2 | 117 | 32 | 18.5 | 2900 |
| CDLF32-90 | 124 | 32 | 18.5 | 2900 |
| CDLF32-100-2 | 131 | 32 | 18.5 | 2900 |
| CDLF32-100 | 138 | 32 | 18.5 | 2900 |
| CDLF32-110-2 | 146 | 32 | 22 | 2900 |
| CDLF32-110 | 153 | 32 | 22 | 2900 |
| CDLF32-120-2 | 160 | 32 | 22 | 2900 |
| CDLF32-120 | 167 | 32 | 22 | 2900 |
| CDLF32-130-2 | 174 | 32 | 30 | 2900 |
| CDLF32-130 | 181 | 32 | 30 | 2900 |
| CDLF32-140-2 | 189 | 32 | 30 | 2900 |
| CDLF32-140 | 196 | 32 | 30 | 2900 |
| CDLF42-10-1 | 16 | 42 | 3.0 | 2900 |
| CDLF42-10 | 20 | 42 | 4.0 | 2900 |
| CDLF42-20-2 | 32 | 42 | 5.5 | 2900 |
| CDLF42-20 | 41 | 42 | 7.5 | 2900 |
| CDLF42-30-2 | 52 | 42 | 11 | 2900 |
| CDLF42-30 | 61 | 42 | 11 | 2900 |
| CDLF42-40-2 | 73 | 42 | 15 | 2900 |
| CDLF42-40 | 81 | 42 | 15 | 2900 |
| CDLF42-50-2 | 93 | 42 | 18.5 | 2900 |
| CDLF42-50 | 101 | 42 | 18.5 | 2900 |
| CDLF42-60-2 | 113 | 42 | 22 | 2900 |
| CDLF42-60 | 122 | 42 | 22 | 2900 |
| CDLF42-70-2 | 134 | 42 | 30 | 2900 |
| CDLF42-70 | 142 | 42 | 30 | 2900 |
| CDLF42-80-2 | 154 | 42 | 30 | 2900 |
| CDLF42-80 | 162 | 42 | 30 | 2900 |
| CDLF42-90-2 | 174 | 42 | 30 | 2900 |
| CDLF42-90 | 183 | 42 | 37 | 2900 |
| CDLF42-100-2 | 194 | 42 | 37 | 2900 |
| CDLF42-100 | 203 | 42 | 37 | 2900 |
| CDLF42-110-2 | 217 | 42 | 45 | 2900 |
| CDLF42-110 | 225 | 42 | 45 | 2900 |
| CDLF42-120-2 | 238 | 42 | 45 | 2900 |
| CDLF42-120 | 247 | 42 | 45 | 2900 |
| CDL42-130-2 | 259 | 42 | 45 | 2900 |
| CDL65-10-1 | 13 | 65 | 4.0 | 2900 |
| CDL65-10 | 20 | 65 | 5.5 | 2900 |
| CDL65-20-2 | 26 | 65 | 7.5 | 2900 |
| CDL65-20-1 | 33 | 65 | 11 | 2900 |
| CDL65-20 | 40 | 65 | 11 | 2900 |
| CDL65-30-2 | 46 | 65 | 15 | 2900 |
| CDL65-30-1 | 53 | 65 | 15 | 2900 |
| CDL65-30 | 60 | 65 | 18.5 | 2900 |
| CDL65-40-2 | 66 | 65 | 18.5 | 2900 |
| CDL65-40-1 | 73 | 65 | 22 | 2900 |
| CDL65-40 | 80 | 65 | 22 | 2900 |
| CDL65-50-2 | 88 | 65 | 30 | 2900 |
| CDL65-50-1 | 95 | 65 | 30 | 2900 |
| CDL65-50 | 102 | 65 | 30 | 2900 |
| CDL65-60-2 | 110 | 65 | 30 | 2900 |
| CDL65-60-1 | 117 | 65 | 37 | 2900 |
| CDL65-60 | 124 | 65 | 37 | 2900 |
| CDL65-70-2 | 132 | 65 | 37 | 2900 |
| CDL65-70-1 | 139 | 65 | 37 | 2900 |
| CDL65-70 | 146 | 65 | 45 | 2900 |
| CDL65-80-2 | 154 | 65 | 45 | 2900 |
| CDL65-80-1 | 161 | 65 | 45 | 2900 |
| CDL85-10-1 | 14 | 85 | 5.5 | 2900 |
| CDL85-10 | 20 | 85 | 7.5 | 2900 |
| CDL85-20-2 | 30 | 85 | 11 | 2900 |
| CDL85-20 | 41 | 85 | 15 | 2900 |
| CDL85-30-2 | 52 | 85 | 18.5 | 2900 |
| CDL85-30 | 64 | 85 | 22 | 2900 |
| CDL85-40-2 | 75 | 85 | 30 | 2900 |
| CDL85-40 | 86 | 85 | 30 | 2900 |
| CDL85-50-2 | 98 | 85 | 37 | 2900 |
| CDL85-50 | 110 | 85 | 37 | 2900 |
| CDL85-60-2 | 122 | 85 | 45 | 2900 |
| CDL85-60 | 134 | 85 | 45 | 2900 |
| CDL120-10 | 18.5 | 120 | 11 | 2950 |
| CDL120-20-1 | 34.5 | 120 | 18.5 | 2950 |
| CDL120-20 | 40 | 120 | 22 | 2950 |
| CDL120-30 | 61 | 120 | 30 | 2950 |
| CDL120-40-1 | 76 | 120 | 37 | 2950 |
| CDL120-50-1 | 97 | 120 | 45 | 2950 |
| CDL120-60-1 | 118 | 120 | 55 | 2950 |
| CDL120-70 | 145 | 120 | 75 | 2950 |
| CDL150-10-1 | 12.5 | 150 | 11 | 2950 |
| CDL150-10 | 18.5 | 150 | 15 | 2950 |
| CDL150-20-1 | 35 | 150 | 22 | 2950 |
| CDL150-30-2 | 49 | 150 | 30 | 2950 |
| CDL150-30 | 63 | 150 | 37 | 2950 |
| CDL150-40-1 | 77 | 150 | 45 | 2950 |
| CDL150-50-2 | 92 | 150 | 55 | 2950 |
| CDL150-60 | 130 | 150 | 75 | 2950 |
Write your message here and send it to us
Related products
-

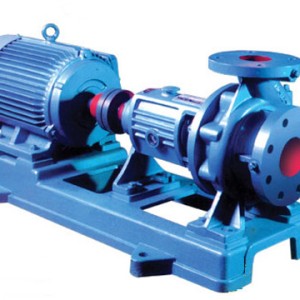

IS Series Single Stage Single Suction Centrifugal Pump
Flow: 10-600m3/h
Lift: 5-150m
Caliber:
Power:
Temperate:
-

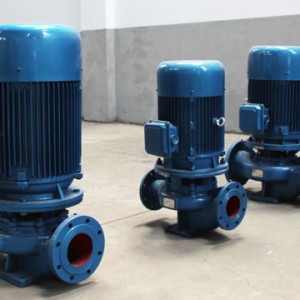

ISG Series Single Stage Single Suction Pipeline Pump
Flow: 2.5-1200m3/h
Lift: 8-150m
Caliber: 15-500mm
Power: 0.37-250kw
Temperate: ≤120℃
-

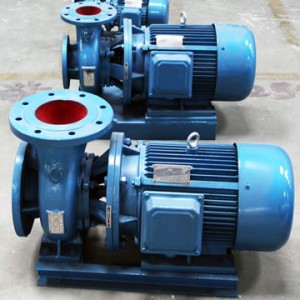

ISW Type Horizontal Pipeline Centrifugal Pump
Flow: 2.5-1200m3/h
Lift: 10-150m
Caliber: 15-500mm
Power: 1.1-250kw
Temperate: ≤120℃
-

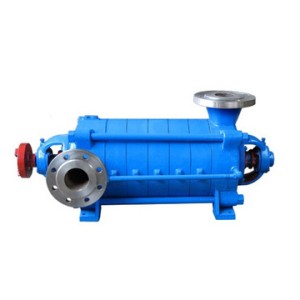

D Type Horizontal Multistage Centrifugal Pump
