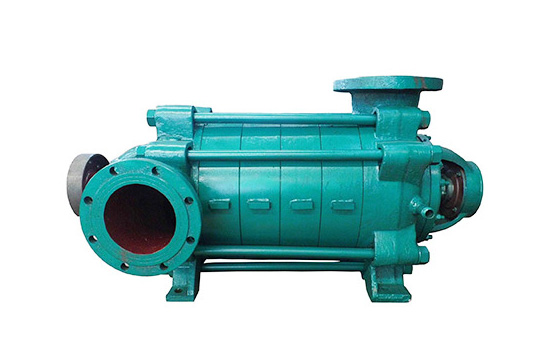

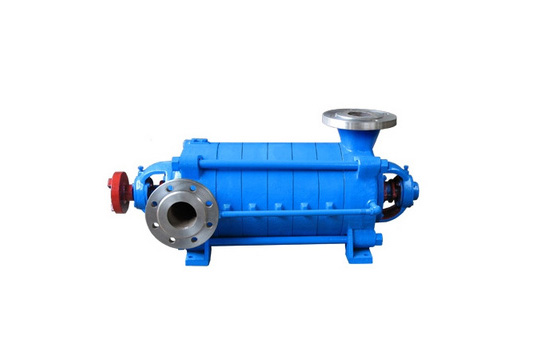

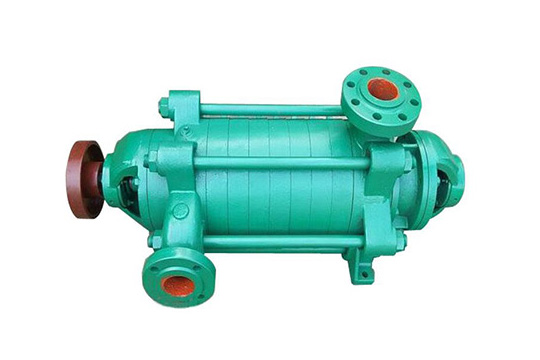

D Type Horizontal Multistage Centrifugal Pump

Short Description:

Capacity: 6.3-850m³/h
Head: 1.7-100bar
Inlet/Outlet Dia: 2-12inch
Temperature: -20℃-150℃
Max. Stage: 14 stages


Product Detail

Product Tags

This series of pumps is a horizontal single-suction multi-stage centrifugal pump. It adopts the hydraulic model of high-efficiency energy-saving products recommended by the state. It has high efficiency, wide performance range, safe and stable operation, low noise, long service life and convenient installation and maintenance. Etc. The product can be used to transport clean water without solid particles (abrasives), without suspended solids or other liquids with similar physicochemical properties to clean water. The pump inlet allows a pressure of less than 0.6 MPa. According to their scope of use, they are mainly divided into the following types:

D: used to deliver clear water without solid particles used to miner with the temperature range from 0℃~80℃,The inlet is horizontal direction.

DM: used to deliver liquid with less solid particles or miner with the temperature range from 0℃~+80℃. The inlet is horizontal direction.

DG: used to deliver clear water without solid particles or liquid similar to clear water physically

DY: used to deliver oil products without solid with the temperature range from -20℃~+150℃. The inlet perpendicularly direction

DF: used to deliver corrosive liquid and without solid with the temperature range from -20℃~+150℃. The inlet is perpendicularly direction.

All kind type pump discharge is perpendicularly direction. The shaft of all kind type pump can be with soft packing or mechanical seal. The material through which liquid passes is made from cast iron or bronze or stainless steel.

D Type Horizontal Multistage Centrifugal Pump Structural Features:

The D-type pump is a horizontal, single-suction, sectional multi-stage centrifugal pump with the suction port in the horizontal direction and the discharge port in the vertical direction. The pump casing parts such as the inlet section, the middle section and the outlet section of the pump are integrally connected by tension bolts, and the number of stages of the pump is selected according to the lift of the pump.

The rotor part of the series mainly consists of the impeller, the bushing, the balance disc and the like mounted on the shaft, and the number of the impeller depends on the number of stages of the pump. The on-axis parts are fastened with a flat key and a shaft nut to make them integral with the shaft. The entire rotor is supported by rolling bearings or plain bearings at both ends. The bearings are different according to the model and do not bear axial force. The axial force is balanced by the balance disc.

The sealing surface between the inlet section, the middle section and the outlet section of the pump is sealed with a sealant or O-ring. The seal ring and vane sleeve are sealed between the rotor part and the fixed part, and the seal ring and vane are sealed. The wear level of the sleeve should be replaced when it affects the performance of the pump.

The seal form of the shaft is mechanical seal and packing seal. When the pump is sealed with packing, the position of the packing ring should be properly placed, and the tightness of the packing must be appropriate, so that the liquid can be oozing one drop at a time. The various sealing components of the pump are installed in the sealed cavity, and a certain pressure of water is introduced into the cavity to act as a water seal, water cooling or water lubrication. A replaceable bushing is provided at the shaft seal to protect the pump shaft.

The pump allows the rotor to swim axially in the pump casing during operation. The pump type generally adopts rolling bearing and dry oil lubrication structure (D85-67, D155-67 type pump can adopt sliding bearing, thin oil lubrication structure, or rolling bearing Dry oil lubrication structure).

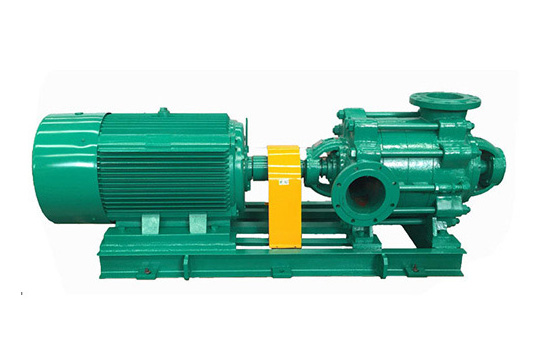

The pumps are driven directly by the prime mover via a flexible coupling that rotates clockwise from the direction of the prime mover.

(If the user has special requirements on the material and structure of the pump, it can be negotiated with our company. The company can change the direction of the pump inlet and outlet according to the user’s needs, and can realize the multi-outlet structure and function of the pump.)

D Type Horizontal Multistage Centrifugal Pump Technical Parameter:

Model Speed
（r/min）		 Capacity Head
（m）		 Efficiency
(%)		 Power（KW） NPSH
（m）
m3/h L/S Shaft power Motor power
  D
DG  6-25×3		 2950 3.75 1.04 76.5 33 2.37 5.5 2.0
6.3 1.75 75 45 2.86 2.0
7.5 2.08 73.5 47 3.19 2.5
  D
DG  6-25×4		 2950 3.75 1.04 102 33 3.16 7.5 2.0
6.3 1.75 100 45 3.81 2.0
7.5 2.08 98 47 4.26 2.5
  D
DG  6-25×5		 2950 3.75 1.04 127.5 33 3.95 7.5 2.0
6.3 1.75 125 45 4.77 2.0
7.5 2.08 122.5 47 5.32 2.5
  D
DG  6-25×6		 2950 3.75 1.04 153 33 4.73 11 2.0
6.3 1.75 150 45 5.72 2.0
7.5 2.08 147 47 6.39 2.5
  D
DG  6-25×7		 2950 3.75 1.04 178.5 33 5.52 11 2.0
6.3 1.75 175 45 6.67 2.0
7.5 2.08 171.5 47 7.45 2.5
  D
DG  6-25×8		 2950 3.75 1.04 204 33 6.31 15 2.0
6.3 1.75 200 45 7.63 2.0
7.5 2.08 196 47 8.58 2.5
  D
DG  6-25×9		 2950 3.75 1.04 229.5 33 7.10 15 2.0
6.3 1.75 225 45 8.52 2.0
7.5 2.08 220.5 47 9058 2.5
  D
DG  6-25×10		 2950 3.75 1.04 255 33 7.89 18.5 2.0
6.3 1.75 250 45 9.53 2.0
7.5 2.08 245 47 10.63 2.5
  D
DG  6-25×11		 2950 3.75 1.04 280.5 33 8.68 18.5 2.0
6.3 1.75 275 45 10.5 2.0
7.5 2.08 269.5 47 11.71 2.5
  D
DG  6-25×12		 2950 3.75 1.04 306 33 9.47 18.5 2.0
6.3 1.75 300 45 11.44 2.0
7.5 2.08 294 47 12.78 2.5
  D
DG  12-25×3		 2950 7.5 2.08 84.6 44 3.93 7.5 2.0
12.5 3.47 75 54 4.73 2.0
15.0 4.17 69 53 5.37 2.5
  D
DG  12-25×4		 2950 7.5 2.08 112.8 44 5.24 11 2.0
12.5 3.47 100 54 6.30 2.0
15.0 4.17 92 53 7.09 2.5
  D
DG  12-25×5		 2950 7.5 2.08 141 44 6.55 11 2.0
12.5 3.47 125 54 7.88 2.0
15.0 4.17 115 53 8.86 2.5
  D
DG  12-25×6		 2950 7.5 2.08 169.2 44 7.85 15 2.0
12.5 3.47 150 54 9.46 2.0
15.0 4.17 138 53 10.64 2.5
  D
DG  12-25×7		 2950 7.5 2.08 197.4 44 9.16 15 2.0
12.5 3.47 175 54 11.0 2.0
15.0 4.17 161 53 12.41 2.5
  D
DG  12-25×8		 2950 7.5 2.08 225.6 44 10.47 18.5 2.0
12.5 3.47 200 54 12.51 2.0
15.0 4.17 184 53 14.18 2.5
  D
DG  12-25×9		 2950 7.5 2.08 253.8 44 11.78 18.5 2.0
12.5 3.47 225 54 14.18 2.0
15.0 4.17 207 53 15.95 2.5
  D
DG  12-25×10		 2950 7.5 2.08 282 44 13.09 22 2.0
12.5 3.47 250 54 15.76 2.0
15.0 4.17 230 53 17.73 2.5
  D
DG  12-25×11		 2950 7.5 2.08 310.2 44 14.4 22 2.0
12.5 3.47 275 54 17.34 2.0
15.0 4.17 253 53 19.5 2.5
  D
DG  12-25×12		 2950 7.5 2.08 338.4 44 15.7 30 2.0
12.5 3.47 300 54 18.9 2.0
15.0 4.17 276 53 27.3 2.5
  D
DG  25-30×3		 2950 15 4.17 102 50 8.33 15 2.2
25 6.94 90 62 9.88 2.2
30 8.33 82.6 63 10.7 2.6
  D
DG  25-30×4		 2950 15 4.17 136 50 11.11 18.5 2.2
25 6.94 120 62 13.1 2.2
30 8.33 110 63 14.26 2.6
  D
DG  25-30×5		 2950 15 4.17 170 50 13.89 22 2.2
25 6.94 150 62 16.47 2.2
30 8.33 137.5 63 17.83 2.6
  D
DG  25-30×6		 2950 15 4.17 204 50 16.67 30 2.2
25 6.94 180 62 19.77 2.2
30 8.33 165 63 21.4 2.6
  D
DG  25-30×7		 2950 15 4.17 238 50 19.44 30 2.2
25 6.94 210 62 23.1 2.2
30 8.33 192.5 63 24.90 2.6
  D
DG  25-30×8		 2950 15 4.17 272 50 22.22 37 2.2
25 6.94 240 62 26.4 2.2
30 8.33 220 63 28.53 2.6
  D
DG  25-30×9		 2950 15 4.17 306 50 25.0 37 2.2
25 6.94 270 62 29.65 2.2
30 8.33 247.5 63 32.1 2.6
  D
DG  25-30×10		 2950 15 4.17 340 50 27.8 45 2.2
25 6.94 300 62 32.9 2.2
30 8.33 275 63 35.7 2.6
  D
DG  46-30×3		 2950 30 8.33 102 64 13.02 22 2.4
46 12.5 90 70 16.11 3.0
55 15.3 81 68 17.84 4.6
  D
DG  46-30×4		 2950 30 8.33 136 64 17.36 30 2.4
46 12.8 120 70 21.48 3.0
55 15.3 108 68 23.79 4.6
  D
DG  46-30×5		 2950 30 8.33 170 64 21.7 37 2.4
46 12.8 150 70 26.85 3.0
55 15.3 135 68 29.74 4.6
  D
DG  46-30×6		 2950 30 8.33 204 64 26.04 37 2.4
46 12.8 180 70 32.21 3.0
55 15.3 162 68 35.68 4.6
  D
DG  46-30×7		 2950 30 8.33 238 64 30.38 45 2.4
46 12.8 210 70 37.58 3.0
55 15.3 189 68 41.63 4.6
  D
DG  46-30×8		 2950 30 8.33 274 64 34.72 55 2.4
46 12.8 240 70 42.95 3.0
55 15.3 216 68 47.58 4.6
  D
DG  46-30×9		 2950 30 8.33 306 64 39.06 55 2.4
46 12.8 270 70 48.32 3.0
55 15.3 243 68 53.53 4.6
  D
DG  46-30×10		 2950 30 8.33 340 64 43.4 75 2.4
46 12.8 300 70 53.69 3.0
55 15.3 270 344 59.47 4.6
  D
DG  46-50×3		 2950 30 8.33 166.5 54 25.19 37 2.5
46 12.8 150 63 29.83 2.8
55 15.3 138 64 32.3 3.2
  D
DG  46-50×4		 2950 30 8.33 222 54 33.59 45 2.5
46 12.8 200 63 39.77 2.8
55 15.3 184 64 43.06 3.2
  D
DG  46-50×5		 2950 30 8.33 277.5 54 41.98 55 2.5
46 12.8 250 63 49.71 2.8
55 15.3 230 64 53.83 3.2
  D
DG  46-50×6		 2950 30 8.33 333 54 50.38 75 2.5
46 12.8 300 63 59.65 2.8
55 15.3 276 64 64.59 3.2
  D
DG  46-50×7		 2950 30 8.33 388.5 54 58.78 75 2.5
46 12.8 250 63 69.6 2.8
55 15.3 322 64 72.36 90 3.2
  D
DG  46-50×8		 2950 30 8.33 440 54 67.18 90 2.5
46 12.8 400 63 79.54 2.8
55 15.3 368 64 86.12 3.2
  D
DG  46-50×9		 2950 30 8.33 499.5 54 75.57 110 2.5
46 12.8 450 63 89.48 2.8
55 15.3 414 64 96.89 3.2
  D
DG  46-50×10		 2950 30 8.33 555 54 83.97 110 2.5
46 12.8 500 63 99.42 2.8
55 15.3 460 64 107.66 3.2
  D
DG  46-50×11		 2950 30 8.33 610.5 54 92.37 132 2.5
46 12.8 550 63 109.36 2.8
55 15.3 506 64 118.42 3.2
  D
DG  46-50×12		 2950 30 8.33 666 54 100.8 132 2.5
46 12.8 600 63 119.8 2.8
55 15.3 552 64 129.2 3.2
  D
DG  85-45×2		 2950 55 15.3 102 63 24.25 37 3.2
85 23.6 90 72 28.94 4.2
100 27.8 78 70 30.35 5.2
  D
DG  85-45×3		 2950 55 15.3 153 63 36.38 55 3.2
85 23.6 135 72 43.3 4.2
100 27.8 117 70 45.52 5.2
  D
DG  85-45×4		 2950 55 15.3 204 63 48.5 75 3.2
85 23.6 180 72 57.87 4.2
100 27.8 156 70 60.7 5.2
  D
DG  85-45×5		 2950 55 15.3 255 63 60.63 90 3.2
85 23.6 225 72 72.34 4.2
100 27.8 195 70 75.86 5.2
  D
DG  85-45×6		 2950 55 15.3 306 63 72.75 110 3.2
85 23.6 270 72 86.81 4.2
100 27.8 234 70 91.04 5.2
  D
DG  85-45×7		 2950 55 15.3 357 63 84.88 132 3.2
85 23.6 315 72 101.3 4.2
100 27.8 273 70 106.2 5.2
  D
DG  85-45×8		 2950 55 15.3 408 63 97.0 132 3.2
85 23.6 360 72 115.7 4.2
100 27.8 312 70 121.4 5.2
  D
DG  85-45×9		 2950 55 15.3 459 63 109.1 160 3.2
85 23.6 405 72 130.2 4.2
100 27.8 351 70 136.6 5.2
  D
DG  155-30×2		 1480 100 27.8 65 64 27.66 55 3.2
155 43 60 75 33.77 3.9
185 51.4 55 75 36.95 4.8
  D
DG  155-30×3		 1480 100 27.8 97.5 64 41.2 75 3.2
155 43 90 75 50.65 3.9
185 51.4 82.5 75 55.4 4.8
  D
DG  155-30×4		 1480 100 27.8 130 64 55.32 90 3.2
155 43 120 75 67.54 3.9
185 51.4 110 75 73.9 4.8
  D
DG  155-30×5		 1480 100 27.8 162.5 64 69.15 110 3.2
155 43 150 75 84.42 3.9
185 51.4 137.5 75 92.37 4.8
  D
DG  155-30×6		 1480 100 27.8 195 64 82.98 132 3.2
155 43 180 75 101.3 3.9
185 51.4 165 75 110.8 4.8
  D
DG  155-30×7		 1480 100 27.8 227.5 64 96.81 160 3.2
155 43 210 75 118.2 3.9
185 51.4 192.5 75 29.3 4.8
  D
DG  155-30×8		 1480 100 27.8 260 64 110.6 180 3 .2
155 43 240 75 135.1 3.9
185 51.4 220 75 147.8 4.8
  D
DG  155-30×9		 1480 100 27.8 292.5 64 124.5 180 3.2
155 43 270 75 152 3.9
185 51.4 247.5 75 166.3 4.8
  D
DG  155-30×10		 1480 100 27.8 325 64 138.3 225 3.2
155 43 300 75 168.8 3.9
185 51.4 725 75 184.7 4.8
  D
DG  155-67×3		 2950 100 27.8 228 64 97.0 132 3.2
155 43 200 74 114.7 5.0
185 51.4 177 72 123.9 6.6
  D
DG  155-67×4		 2950 100 27.8 304 64 129.4 185 3.2
155 43 268 74 152.9 5.0
185 51.4 236 72 165.1 6.6
  D
DG  155-67×5		 2950 100 27.8 380 64 161.7 220 3.2
155 43 335 74 191.1 5.0
185 51.4 295 72 206.4 6.6
  D
DG  155-67×6		 2950 100 27.8 456 64 194 275 3.2
155 43 402 74 229.3 5.0
185 51.4 354 72 247.7 6.6
  D
DG  155-67×7		 2950 100 27.8 532 64 226.4 350 3.2
155 43 469 74 267.5 5.0
185 51.4 413 72 289 6.6
  D
DG  155-67×8		 2950 100 27.8 608 64 258.7 350 3.2
155 43 536 74 305.7 5.0
185 51.4 472 72 330.3 6.6
  D
DG  155-67×9		 2950 100 27.8 684 64 291.1 440 3.2
155 43 603 74 344 5.0
185 51.4 531 72 371.9 6.6
  D
DG  280-43×2		 1480 185 51.4 94 69 68.6 110 3.0
280 77.8 86 77 85.17 4.7
335 93.1 76 75 92.4 6.0
  D
DG  280-43×3		 1480 185 51.4 141 69 103 150 3.0
280 77.8 129 77 127.7 4.7
335 93.1 114 75 138.7 6.0
  D
DG  280-43×4		 1480 185 51.4 188 69 137.3 230 3.0
280 77.8 172 77 170.3 4.7
335 93.1 152 75 184.9 6.0
  D
DG  280-43×5		 1480 185 51.4 235 69 171.6 300 3.0
280 77.8 215 77 212.9 4.7
335 93.1 190 75 231.1 6.0
  D
DG  280-43×6		 1480 185 51.4 282 69 205.9 300 3.0
280 77.8 258 77 255.5 4.7
335 93.1 228 75 277.3 6.0
  D
DG  280-43×7		 1480 185 51.4 329 69 240.2 350 3.0
280 77.8 304 77 298.1 4.7
335 93.1 226 75 323.6 6.0
  D
DG  280-43×8		 1480 185 51.4 376 69 274.5 410 3.0
280 77.8 344 77 304.7 4.7
335 93.1 304 75 369.8 6.0
  D
DG  280-43×9		 1480 185 51.4 423 69 308.9 430 3.0
280 77.8 387 77 383.2 4.7
335 93.1 3742 75 416 6.0
  D
DG  280-65×6		 1480 185 51.4 408 61 337 500 2.8
280 77.8 390 73 407.4 3.7
335 93.1 372 75 452.5 5.0
  D
DG  280-65×7		 1480 185 51.4 476 61 393.1 680 2.8
280 77.8 455 73 475.3 3.7
335 93.1 434 75 528 5.0
  D
DG  280-65×8		 1480 185 51.4 544 61 449.3 680 2.8
280 77.8 520 73 543.2 3.7
335 93.1 496 75 603.3 5.0
  D
DG  280-65×9		 1480 185 51.4 612 61 505.5 850 2.8
280 77.8 585 73 611.1 3.7
335 93.1 558 75 678.8 5.0
  D
DG  280-65×10		 1480 185 51.4 680 61 561.8 850 2.8
280 77.8 650 73 579 3.7
335 93.1 620 75 754.2 5.0
  D
DG  450-60×3		 1480 335 93.1 195 72 247.1 360 3.8
450 125 180 76 289.2 4.9
500 139 171 78 298.5 6.0
  D
DG  450-60×4		 1480 335 93.1 260 72 329.4 500 3.8
450 125 240 76 372.3 4.9
500 139 228 78 398 6.0
  D
DG  450-60×5		 1480 335 93.1 320 72 411.8 680 3.8
450 125 300 76 465.4 4.9
500 139 285 78 497.5 6.0
  D
DG  450-60×6		 1480 335 93.1 390 72 494.2 680 3.8
450 125 360 76 558.5 4.9
500 139 242 78 597 6.0
  D
DG  450-60×7		 1480 335 93.1 455 72 576.5 850 3.8
450 125 420 76 651.5 4.9
500 139 399 78 696.5 6.0
  D
DG  450-60×8		 1480 335 93.1 520 72 658.9 850 3.8
450 125 480 76 744.6 4.9
500 139 456 78 796 6.0
  D
DG  450-60×9		 1480 335 93.1 585 72 741.2 1050 3.8
450 125 540 76 837.7 4.9
500 139 513 78 823.6 6.0
  D
DG  450-60×10		 1480 335 93.1 650 72 930.8 1050 3.8
450 125 600 76 995.1 4.9
500 139 570 78 6.0
  • Previous:
  • Next:
    • Write your message here and send it to us

    Related products

    Hit enter to search or ESC to close
