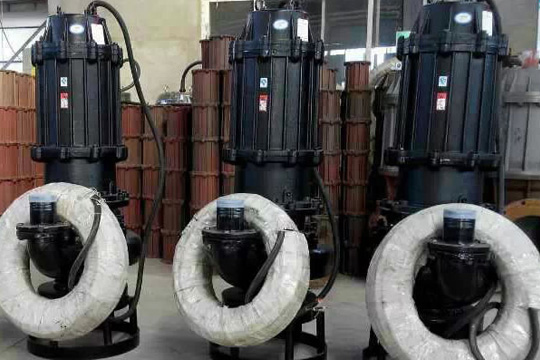

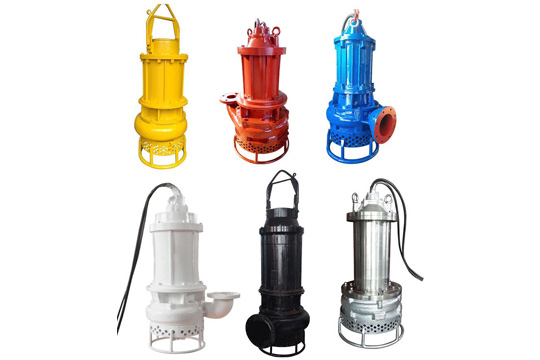

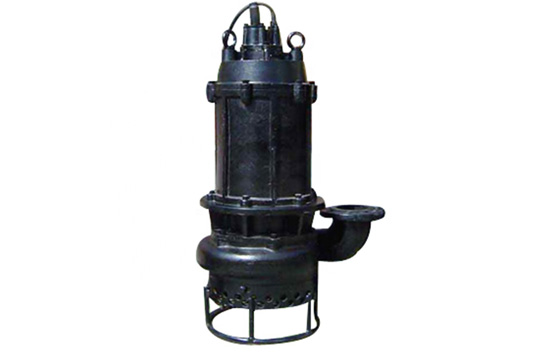

ZJQ Submersible Slurry Pump

Short Description:

Size: 50-400mm
Capacity: 10-2000m3/h
Head: 8-80m
Max.particles: 60mm
Temperature Range: ≤80°C


Product Detail

Product Tags

The submersible slurry pump is a pump designed for pumping liquids containing solid particles. APK® ZJQ series submersible slurry pump is a kind of hydraulic machinery, the motor and the pump of which are coaxially submerged in medium to work. The wet parts of the pump are made from high alloy wear-resistant material, so the pump has good wear resistance and large flowing passage. It is applicable for conveying medium such as sand, sludge, ore slurry, coal slurry, sand, stones containing big solid particles. It with wide range of applications in the industrial fields.

As one of the manufacturers of robust submersible pumps, APK® is a market leader in terms of product quality. We have a full range of high quality submersible slurry pumps for dewatering, de-friction, abrasive media with high solids content (e.g. sand) in quarries and mining.

Model Expression: ZJQ200-30-45

ZJQ – Submersible Slurry Pump
200 – Rated Capacity:150m3/h
30 – Rated Head : 30m
45 – Motor Power

ZJQ Submersible Slurry Pump Spefications

1. Size: 50-400mm
2. Capacity: 10-2000m3/h
3. Head: 8-80m
4. Max.particles: 60mm
5. Temperature Range: ≤80°C
6. Materials: High chrome alloy, Cast iron, SS304, SS316L etc.

ZJQ Submersible Slurry Pumps Features

1. Reliable and long-lasting, the highest quality construction and materials ensure long service life.
2. Vertical, centrifugal, submersible pump design.
3. Various parameter configurations of slurry pumps can be customized.
4. Besides the main impeller, there is the agitation impeller which can agitate the sludge deposited on the water bottom into turbulent flow and pump the sludge out.
5. The agitation impeller directly approaches the depositional surface, and controls the concentration through submerged depth. Under the condition of large medium proportion, an auxiliary device can be arranged to increase the concentration of the medium.
6. The wet parts such as the impeller and the agitation impeller are made from high-hardness high chromium cast steel, have wear resistance, corrosion resistance and strong drainage capacity, and allow big solid particles to pass.
7. The integral device is simplified, needs no auxiliary stirrer device or ejector device, and has simple and convenient operation and low total investment of the unit.
8. The motor is submerged in water, is not limited by suction stroke, and has high sludge suction rate and thorough desilting.

ZJQ Submersible Slurry Pumps Performance Parameters:

ZJQ Submersible Slurry Pumps Performance Parameters:
No. Model Size (mm) Capacity Q (m3/h) Head H (m) Power P (kw) Eff. η (%) Speed n (r/min) Max. particles (mm) Weight (kg)
1 50ZJQ10-20-3 50 10 20 3 37 1460 8 110
2 50ZJQ15-18-3 50 15 18 3 46 1460 8 110
3 50ZJQ20-15-3 50 20 15 3 52 1460 8 110
4 50ZJQ25-12-3 50 25 12 3 58 1460 8 110
5 65ZJQ30-12-3 65 30 12 3 60 1460 8 110
6 65ZJQ35-10-3 65 35 10 3 64 1460 8 110
7 65ZJQ40-8-3 65 40 8 3 66 1460 8 110
8 50ZJQ15-22-4 50 15 22 4 43 1460 10 113
9 50ZJQ18-20-4 50 18 20 4 46 1460 10 113
10 50ZJQ20-18-4 50 20 18 4 50 1460 10 113
11 50ZJQ25-20-4 50 25 20 4 52 1460 10 113
12 65ZJQ30-16-4 65 30 16 4 52 1460 10 113
13 65ZJQ35-15-4 65 35 15 4 60 1460 10 113
14 65ZJQ40-12-4 65 40 12 4 63 1460 10 113
15 65ZJQ45-10-4 65 45 10 4 66 1460 10 113
16 80ZJQ20-30-5.5 80 20 30 5.5 42 1460 13 205
17 80ZJQ30-20-5.5 80 30 20 5.5 54 1460 13 205
18 80ZJQ45-15-5.5 80 45 15 5.5 41 1460 13 205
19 80ZJQ15-20-5.5 80 15 20 5.5 33 1460 13 205
20 80ZJQ50-10-5.5 80 50 10 5.5 44 1460 13 205
21 80ZJQ15-20-7.5 80 15 20 7.5 34 1460 13 210
22 80ZJQ20-25-7.5 80 20 25 7.5 35 1460 13 210
23 80ZJQ25-20-7.5 80 25 20 7.5 36 1460 13 210
24 80ZJQ25-30-7.5 80 25 30 7.5 36 1460 13 210
25 80ZJQ30-30-7.5 80 30 30 7.5 37 1460 13 210
26 80ZJQ32-20-7.5 80 32 20 7.5 37 1460 13 210
27 80ZJQ45-15-7.5 80 45 15 7.5 41 1460 13 210
28 100ZJQ100-10-7.5 100 100 10 7.5 48 1460 21 220
29 80ZJQ25-40-11 80 25 40 11 36 1460 13 300
30 80ZJQ40-25-11 80 40 25 11 38 1460 13 240
31 80ZJQ50-21-11 80 50 21 11 40 1460 13 240
32 80ZJQ50-26-11 80 50 26 11 40 1460 13 240
33 80ZJQ70-20-11 80 70 20 11 43 1460 13 240
34 100ZJQ100-18-11 100 100 18 11 48 1460 21 240
35 80ZJQ25-40-15 80 25 40 15 37 1460 13 330
36 80ZJQ50-26-15 80 50 26 15 40 1460 13 260
37 80ZJQ50-28-15 80 50 28 15 40 1460 13 260
38 100ZJQ60-30-15 100 60 30 15 41 1460 13 265
39 80ZJQ70-24-15 80 70 24 15 42 1460 13 260
40 100ZJQ75-25-15 100 75 25 15 43 1460 13 260
41 100ZJQ100-18-15 100 100 18 15 49 1460 21 270
42 100ZJQ150-15-15 100 150 15 15 51 1460 21 270
43 150ZJQ150-18-18.5 150 150 18 18.5 49 980 32 550
44 150ZJQ200-12-18.5 150 200 12 18.5 53 980 45 550
45 150ZJQ150-22-22 150 150 22 22 47 980 32 600
46 150ZJQ200-15-22 150 200 15 22 50 980 45 600
47 150ZJQ60-46-30 150 60 46 30 41 980 14 550
48 150ZJQ70-38-30 150 70 38 30 42 980 21 710
49 150ZJQ100-35-30 150 100 35 30 44 980 21 710
50 150ZJQ108-30-30 150 108 30 30 44 980 21 710
51 150ZJQ150-30-30 150 150 30 30 46 980 21 710
52 150ZJQ150-35-30 150 150 35 30 46 980 21 710
53 150ZJQ200-20-30 150 200 20 30 52 980 21 710
54 150ZJQ240-20-30 150 240 20 30 55 980 21 710
55 200ZJQ300-15-30 200 300 15 30 56 980 28 700
56 150ZJQ100-50-37 150 100 50 37 44 980 21 850
57 200ZJQ300-20-37 200 300 20 37 56 980 28 775
58 200ZJQ400-15-37 200 400 15 37 58 980 28 775
59 150ZJQ150-35-45 150 150 35 45 47 980 36 1000
60 150ZJQ200-30-45 150 200 30 45 49 980 36 1110
61 200ZJQ500-15-45 200 500 15 45 59 980 46 1100
62 150ZJQ150-45-55 150 150 45 55 46 980 21 1140
63 150ZJQ250-35-55 150 250 35 55 51 980 36 1140
64 250ZJQ600-15-55 250 600 15 55 60 980 46 1220
65 150ZJQ200-45-75 150 200 45 75 49 980 21 1540
66 150ZJQ200-50-75 150 200 50 75 48 980 14 1550
67 200ZJQ350-35-75 200 350 35 75 53 980 28 1550
68 200ZJQ400-25-75 200 400 25 75 58 980 25 1550
69 200ZJQ500-20-75 200 500 20 75 59 980 25 1550
70 150ZJQ200-60-90 150 200 60 90 48 980 14 1550
71 200ZJQ400-40-90 200 400 40 90 54 980 28 1550
72 200ZJQ500-25-90 200 500 25 90 60 980 25 1550
73 200ZJQ400-50-110 200 400 50 110 53 980 28 1970
74 250ZJQ600-30-110 250 600 30 110 61 980 28 1970
75 300ZJQ780-26-110 300 780 26 110 62 980 50 1970
76 300ZJQ1000-18-110 300 1000 18 110 64 980 50 1970
77 200ZJQ400-60-132 200 400 60 132 53 980 28 2000
78 200ZJQ500-45-132 200 500 45 132 56 980 28 2000
79 200ZJQ500-55-132 200 500 55 132 55 980 28 2000
80 300ZJQ800-35-132 300 800 35 132 63 980 42 2000
81 300ZJQ1000-22-132 300 1000 22 132 64 980 50 2000
82 200ZJQ650-52-160 200 650 52 160 58 980 28 2650
83 300ZJQ780-50-185 300 780 50 185 60 980 38 3330
84 250ZJQ600-55-200 250 600 55 200 62 980 28 4080
85 300ZJQ800-55-220 300 800 55 220 60 980 38 3400
86 350ZJQ1250-35-220 350 1250 35 220 65 980 45 3400
87 350ZJQ1750-30-250 350 1750 30 250 70 980 55 3750
88 350ZJQ1500-35-250 350 1500 35 250 70 980 50 3750
89 350ZJQ1750-40-315 350 1750 40 315 70 980 55 4200
90 400ZJQ2000-35-315 400 2000 35 315 72 980 60 3800
