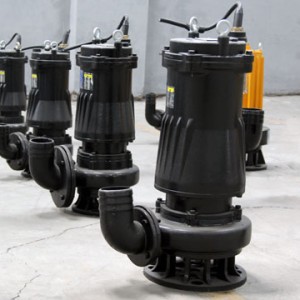

Automatic Mix Sewage Pump

Short Description:

Flow: 10-600m3/h
Lift: 7-40m
Power: 1.1-30kw
Temperate: < 60°C
Caliber:


Product Detail

Product Tags

Automatic mix sewage pump Product overview

Automatic mix submersible sewage pump is a combination of ordinary sewage pump and automatic mix device. This device, with the motor shaft spinning, produces strong mixing force. It will stir to make the sediments in the sewage pool suspend in water and then be drew out by the pump. It makes the pump drain well with no blocking. It completes drainage, cleaning up dirt and mud at one-time, saving operation cost. It is an advanced environmental friendly product, with obvious practical application.

Automatic mix sewage pump Work conditions

1. The temperature of the medium being pumped shall not be higher than 60℃, density 1~1.3kg/m3, PH value 4~10.
2. Made of 1Cr18Ni9Ti stainless steel, applicable to many corrosive liquids.
Note: If you want to pump special liquids at special temperature, please indicate its details clearly when placing the order. We’ll supply the most appropriate pump for you.

Automatic mix sewage pump application range

1. Discharge heavily polluted waste water from factory and trade
2. Drainage systems of urban sewage treatment plant,sewage in hospitals and hotels
3. Uptown sewage water discharge stations
4. Fire fighting system drainage station, water supply equipment for water plant
5. Sewage discharge for municipal engineering and construction site
6. Work as support equipment for exploration, mine, power station
7. Pumping sewage for methane tank in rural area, farm irrigation or cleaning the slit of pool.

Technical Parameters

Model Flow (m³/h) Lift (m) Power (kw) Diameter (mm)
250WQ-JY-600-9-3000-30 600 9 30 0
200WQ-JY-250-22-3000-30 250 22 30 0
150WQ-JY-100-40-3000-30 100 40 30 0
250WQ-JY-600-7-3000-22 600 7 22 0
200WQ-JY-400-10-3000-22 400 10 22 0
200WQ-JY-200-20-3000-22 200 20 22 0
150WQ-JY-300-15-2600-22 300 15 22 0
150WQ-JY-130-30-2600-22 130 30 22 0
200WQ-JY-250-15-3000-18.5 250 15 18.5 0
150WQ-JY-180-22-2600-18.5 180 22 18.5 0
150WQ-JY-150-26-2600-18.5 150 26 18.5 0
150WQ-JY-110-30-2600-18.5 110 30 18.5 0
150WQ-JY-65-40-3200-18.5 65 40 18.5 0
200WQ-JY-300-10-3000-15 300 10 15 0
200WQ-JY-250-11-3000-15 250 11 15 0
150WQ-JY-200-10-2500-15 200 10 15 0
100WQ-JY-100-22-2000-15 100 22 15 0
100WQ-JY-80-30-2000-15 80 30 15 0
200WQ-JY-300-7-3000-11 300 7 11 0
150WQ-JY-150-15-2500-11 150 15 11 0
150WQ-JY-250-6-2500-7.5 250 6 7.5 0
150WQ-JY-210-7-2500-7.5 210 7 7.5 0
150WQ-JY-150-10-2000-7.5 150 10 7.5 0
100WQ-JY-100-15-2000-7.5 100 15 7.5 0
100WQ-JY-80-20-2000-7.5 80 20 7.5 0
100WQ-JY-70-22-2000-7.5 70 22 7.5 0
80WQ-JY-50-30-1600-7.5 50 30 7.5 0
80WQ-JY-50-25-1600-7.5 50 25 7.5 0
50WQ-JY-40-30-1600-7.5 40 30 7.5 0
100WQ-JY-110-10-2000-5.5 110 10 5.5 0
100WQ-JY-65-15-2000-5.5 65 15 5.5 0
80WQ-JY-50-20-1600-5.5 50 20 5.5 0
80WQ-JY-35-25-1600-5.5 35 25 5.5 0
50WQ-JY-25-32-1600-5.5 25 32 5.5 0
100WQ-JY-80-9-2000-4 80 9 4 0
80WQ-JY-60-13-1600-4 60 13 4 0
80WQ-JY-43-13-1600-4 43 13 4 0
80WQ-JY-40-15-1600-4 40 15 4 0
65WQ-JY-25-28-1400-4 25 28 4 0
50WQ-JY-40-15-1400-4 40 15 4 0
50WQ-JY-25-22-1200-4 25 22 4 0
80WQ-JY-50-10-1600-3 50 10 3 0
65WQ-JY-37-13-1400-3 37 13 3 0
65WQ-JY-25-16-1400-3 25 16 3 0
50WQ-JY-42-9-1200-3 42 9 3 0
50WQ-JY-17-25-1200-3 17 25 3 0
80WQ-JY-40-7-1200-2.2 40 7 2.2 0
80WQ-JY-29-8-1600-2.2 29 8 2.2 0
50WQ-JY-40-7-1200-2.2 40 7 2.2 0
50WQ-JY-25-10-1200-2.2 25 10 2.2 0
50WQ-JY-20-15-1200-2.2 20 15 2.2 0
50WQ-JY-15-20-1200-2.2 15 20 2.2 0
50WQ-JY-15-15-1200-2.2 15 15 2.2 0
50WQ-JY-15-10-1200-1.5 15 10 1.5 0
50WQ-JY-12-15-1200-1.5 12 15 1.5 0
50WQ-JY-10-15-1200-1.5 10 15 1.5 0
50WQ-JY-20-7-1200-1.1 20 7 1.1 0
50WQ-JY-10-10-1200-1.1 10 10 1.1 0
