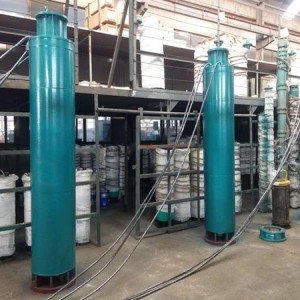

Chilean customer purchases 120KW Dewatering Submersible Pump for drainage of mines
Can the pump be operated below 77.5 meters Head. As the performance curve is not showing below 77.5 meters head.
The head range of this pump is 75-93meters, the pump will not overload when working in this range.
We have solid particles up to 60 mm in the slurry. Are you providing suitable filters to avoid these large size particles.
We will provide you suitable filters to avoid large size particls, and it’s for free.
There is the data specification with curve of WQD300-70-120kw in the below.
As showed in the curve, the shaft power will be 88kw when the pump is working at the rated point, while the pump medium density is large, in order to avoid overcurrent of the motor, we recommend the motor of 120KW.
Dewatering Submersible Pump Technical:
Product name: submersible dewatering pump
Site: Chile
Product Model: WQD300-70-120
Rated capacity: 300m³/h
Rated head: 70m
Power supply: 3phase/415V/50Hz
Type of impeller: enclosed
Impeller stages: 3
Shaft seal: mechnical seal
Cooling Type: water cooling
Cable length: 8m
Cable size: 3*50mm2
Dewatering Submersible Pump Main Materials:
Pump casing: Cast iron
Impeller: Cast iron
Shaft: 40# steel
Bearing: SKF
Inlet and discharge: Cast iron
Dewatering Submersible Pump Installation:
Outlet diameter: 200mm
Inst dry/wet: submerged
Installation: vertical
Max.diving depth: 20m
Dewatering Submersible Pump Liquid:
Pumped liquid: dirty water
Maximum liquid temperature: 40℃
Relative density: 1050kg/m3
Viscosity: 3-6Pas
Ph: 6.5-8.5
Max. through particles: 15mm
Dewatering Submersible Pump Electrical data:
Number of poles: 2
Rated power : 120kW
Rated current: 202A
Power factor 0.84
Mains frequency: 50 Hz
Rated voltage: 415V, 3phase
Rated speed: 2850rpm
Insulation class H
IP class: IP68
Voltage tolerance: =10/-10%
Pump Efficiency: 65%
Type of duty: S1
Starting mode: Soft starting or variable frequency starting
performance curve and dimension for 120kw dewatering submersible pump
If you have any questions about this pump, please kindly let me know, then we will provide you quotation.
Post time: 2021-12-04
