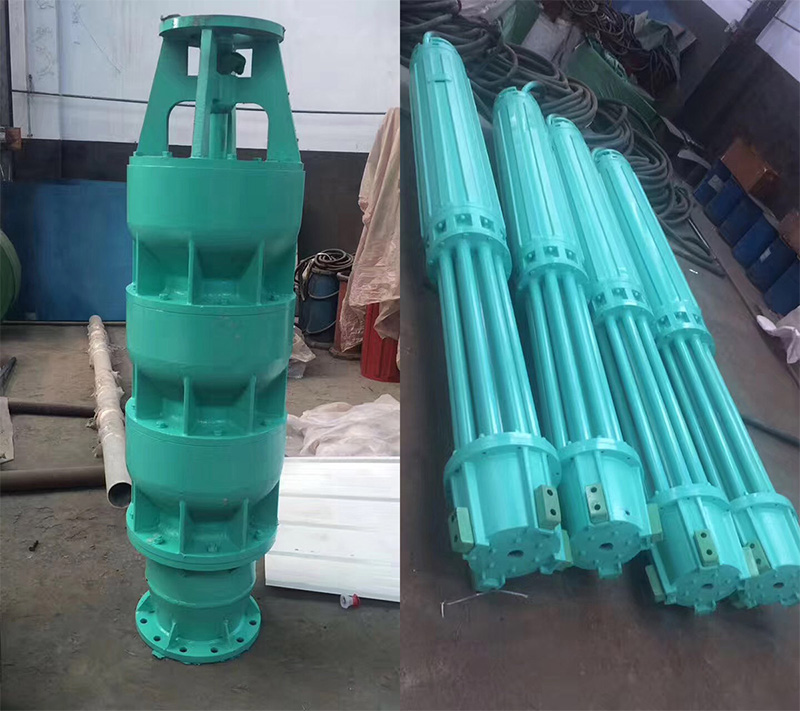

Explosion-proof submersible pump for mining

Shenlong Pumps supplies various models and specifications of mine explosion-proof submersible pumps and large mining submersible pumps. If you want to know more about mining submersible pumps, please contact us. Shenlong mining submersible pumps provide vertical installation. Horizontal installation, oblique installation, minecart installation options, large flow, high lift, motor energy saving, buy mining submersible pumps, look for the Shenlong brand!

Our company develops the third-generation self-balancing mining submersible pump and double-suction mining submersible pump, which are especially suitable for mine drainage. The whole unit can be installed and used vertically, horizontally, or obliquely, which can cope with various complex mine conditions and improve the drainage capacity to a degree. The submersible electric pump system has low requirements for underground installation environmental conditions and has a wide range of applications. Since the whole unit is submerged in the water to work, the heat generated is taken away by the water, with low noise and no temperature rise. The unit structure is double-suction self-balancing, self-suction self-balancing and suspended self-balancing structure.

Explosion-proof submersible pump for mining

Field of application of Explosion-proof submersible pump:

1. Suitable for production drainage of coal mines, iron ore, non-ferrous metal mines, etc.;

2. Rescue and disaster relief for flooding accidents;

3. Drainage and re-mining of flooded mines;

4. Comprehensive treatment of water in mining area;

5. Water intake pump station of water supply company;

6. Urban high-spray landscape engineering;

7. It is a key equipment for mine production drainage, emergency recovery, surface drainage, and water disaster prevention and control.

Specifications and parameters of mine explosion-proof submersible pumps:

Double-suction self-balancing structure; high head, large flow, stubby, no axial force.

Flow range 80~2400m3/h

Head range 100-1700m

Medium temperature≤95℃

Water quality requirements PH4-10; (Special materials can meet higher requirements)

Solid content≤8%; particle diameter≤20mm.

Motor data power range 120-4200KW

Voltage range 660V, 3KV, 6KV, 10KV±5%

Frequency range 50HZ or 60HZ±1%

Environment temperature≤125℃

Motor stages 2 poles or 4 poles

Material application Pump housing material high-grade cast iron, cast steel, stainless steel, duplex steel

Impeller, guide vane cast steel, copper alloy, stainless steel, duplex steel

Shaft, bushing high chromium steel, copper alloy, duplex steel

Bearing material imported materials with excellent wear resistance and lubricating properties

Seal type mechanical seal

The above is the detailed information of the mining submersible pump model, provided by Shenlong. If you have any questions about the information of the horizontal mining submersible pump model, please contact the company for further information on the specifications and parameters of the mining explosion-proof submersible pump. information.


Post time: 2021-12-08
