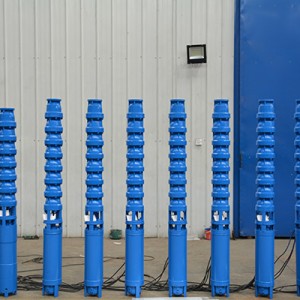

4″ electrical submersible water pump 7.5Kw 380V

Ask:

4″ electrical submersible water pump 7.5Kw 380V

Answer:

Thank you for your enquiry about 4 inch 7.5kw submersible pumps,it’s exactly what we are good at.

Actually we have kinds of 7.5kw pump models, in order to recommend suitable model, we want to know

1. How many cubic meters of water do you need in an hour?
2. What’s the pump head?

Please answer these questions, then we will reply you as soon as possible.

Please check technical parameter of 4″ electrical submersible water pump 7.5Kw 380V

Diameter Model Power Flow range Head range
Inch(“) QJ type kw hp m3/h m
7″ 175QJ10-121/9 7.5 10 9-11 96-140
7″ 175QJ15-80/6 7.5 10 13-17 64-96
7″ 175QJ25-65/5 7.5 10 23-27 53-76
7″ 175QJ32-48/4 7.5 10 29-35 40-56
7″ 175QJ40-36/3 7.5 10 37-43 28-42
7″ 175QJ50-36/3 7.5 10 46-54 28-42
8″ 200QJ15-81/6 7.5 10 13-17 68-92
8″ 200QJ25-56/4 7.5 10 23-27 45-67
8″ 200QJ32-48/3 7.5 10 29-35 38-58
8″ 200QJ40-45/3 7.5 10 37-43 32-48
8″ 200QJ50-30/2 7.5 10 46-54 24-36
8″ 200QJ63-28/2 7.5 10 58-68 24-33
8″ 200QJ80-22/2 7.5 10 74-86 19-25
8″ 200QJ100-15/1 7.5 10 80-120 12-16
10″ 250QJ50-33/2 7.5 10 46-54 28-38
10″ 250QJ80-20/1 7.5 10 74-86 17-23
10″ 250QJ100-18/1 7.5 10 80-120 16-21

Motor, water pump are assembled into a whole, has the advantages of simple structure, and convenient installation and disassembly,installation covers an area of small, the main advantages are: reliable, durable, easy to use, high power, less failure, low repair cost. As long as filled with water in the electric motor, can be normal operation.

Shelong Electric 4-inch Submersible Encapsulated Motors, manufactured in ISO 9001 certified facilities. This motors are built for operation in 4-inch diameter or larger water wells. Our 4-inch submersible motors (0,25 through 9,3kW) feature the industry’s widest range of voltage and frequency ratings in both single- and three-phase models.

It is fitted with water lubricated radial and thrust bearings for maintenance-free operation. The motor is filled with a special FES93 fluid, a special diaphragm ensures pressure compensation inside the motor.


Post time: 2021-12-05
  • Previous:
  • Next:
  • Tags:

  • Write your message here and send it to us
    Related Posts

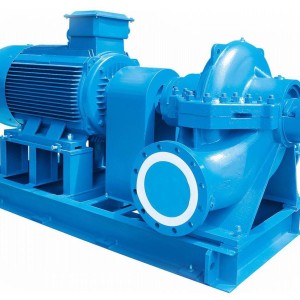

    • 37 KW 700 m3/hr Horizontal Split Case Pump
      37 KW 700 m3/hr Horizontal Split Case Pump

      Indonesia customer inquiry 37 kW 700 m3/hr horizontal split case pump Please kindly offer horizontal split case pump: – 380 V 50 Hz 3 phase ,bare pump end – Have ISO 9001 certificate – Flow rate 700 m3/hr at tdh 10 m ,use with motor not more than 37 kW – Efficiency at duty not …

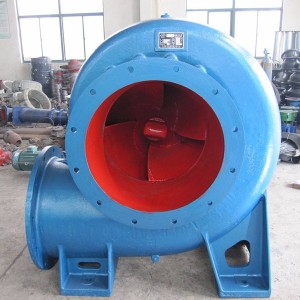

    • 110KW 150 HP 1500 M3/HR 12 Inch Mixed Flow Pump
      110KW 150 HP 1500 M3/HR 12 Inch Mixed Flow Pump

      Singapore customers inquired about 110kW 150 HP 1500 m3/hr 12 inch mixed flow pump Please kindly quote us mixed flow pump as following:- – Have ISO 9001:2015 and ISO 14001:2015 and BSOHSAS 18001:2007 certificate – 380 V 50 Hz 3phase 1500 rpm – Flow rate 1500 m3/hr tdh 15 m efficiency not lower than 80% …

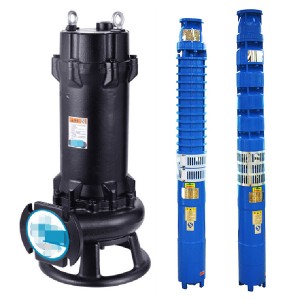

    • 15HP 200 GPM Submersible Pump In Panama
      15HP 200 GPM Submersible Pump In Panama

      Panama customer sends an inquiry about submersible pump, 15hp, 200 gpm Greetings, We are goverment suppliers for more than 10 years and now our goverment established diplomatic relationship with china so we are looking forward for a manufacturer that supply us with many pump required by our water institution in Panama country. Please we need …

    • 4″ electrical submersible water pump 7.5Kw 380V
      4″ electrical submersible water pump 7.5Kw 380V

      Ask: 4″ electrical submersible water pump 7.5Kw 380V Answer: Thank you for your enquiry about 4 inch 7.5kw submersible pumps,it’s exactly what we are good at. Actually we have kinds of 7.5kw pump models, in order to recommend suitable model, we want to know 1. How many cubic meters of water do you need in …

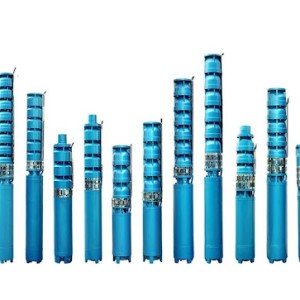

    • Submersible Bore Hole Pump in Nepal
      Submersible Bore Hole Pump in Nepal

      Nepal customer consulting submersible bore hole pump We are water pump supplier and contractor of water pumping scheme in Nepal, we are highly interested to work with your company, So kindly provide your product catalog & selection chart to us so we could study more about your product meanwhile we have some submersible bore hole …

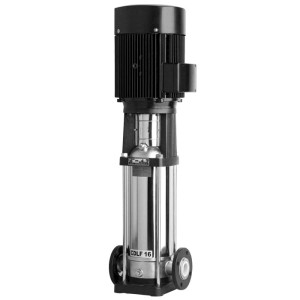

    • 0.4m³/h – 850m³/h Water Pressure Pump
      0.4m³/h – 850m³/h Water Pressure Pump

      Ask: water pressure pump for food RO unit We are looking for water pressure pump for my self own house food RO unit, Pressure 260psi, Flow 18 to 20 gpm, Price? Answer: Water pressure pump, it’s exactly what we are good at. Actually we have kinds of water pressure pump according to different using condition. …

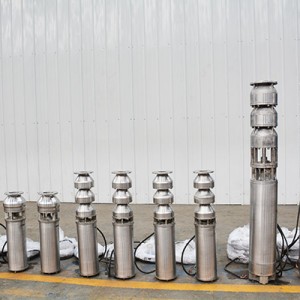

    • 20HP 15 kw submersible pump
