1. Product overview of 110kw S, Sh single-stage double-suction centrifugal pump:
The 110kw centrifugal pump is a new type of energy-saving horizontal split pump, which is used to transport clean water or other liquids with physical and chemical properties similar to water. According to user needs, it can be used to transport muddy water or various corrosive liquids by changing the pump structure and material. The series of pumps are suitable for factories, mines, urban water supply and drainage, power stations, farm irrigation and drainage and various water conservancy projects.
Second, S, Sh single-stage double-suction 110kw centrifugal pump application scope:
It is suitable for factories, mines, urban water supply and drainage, power stations, farmland irrigation and various water conservancy projects.

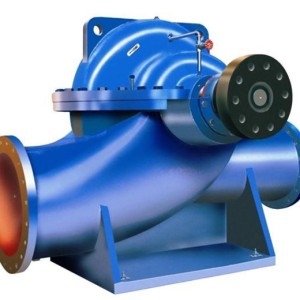

Three, 110kw centrifugal pump structure description:
The suction port and discharge port of this type of pump are below the axis line of the pump, and the axis is vertical and horizontal. There is no need to disassemble the inlet and outlet water pipes and the motor during maintenance. Viewed from the transmission direction, the water pump rotates clockwise (it can also be changed to counterclockwise according to user needs).
The main parts of 110kw centrifugal pump are: pump body, pump cover, impeller, shaft, double suction sealing ring, shaft sleeve, etc.
The pump body and pump cover constitute the working chamber of the impeller. On the inlet and outlet flanges, there are pipe screw holes for installing vacuum gauges and pressure gauges. The lower part of the water inlet and outlet flanges is provided with pipe screw holes for water discharge.
The impeller that has been checked for static balance is fixed on the shaft with a bushing and bushing nuts on both sides, and its axial position can be adjusted by the bushing nut.
The pump shaft is supported by two single row radial ball bearings. The bearings are installed in the bearing body, installed at both ends of the pump body, and lubricated with butter.
The double suction sealing ring is used to reduce the leakage of water from the pressure chamber of the pump back to the suction chamber.
The 110kw centrifugal pump is directly driven by an electric motor through an elastic coupling, and can also be driven by an internal combustion engine if necessary.
The shaft seal is a soft packing seal (mechanical seal structure can be adopted according to user needs).
